Products > Voltage Regulator > > F602 FORD auto spare parts alternator voltage regulator

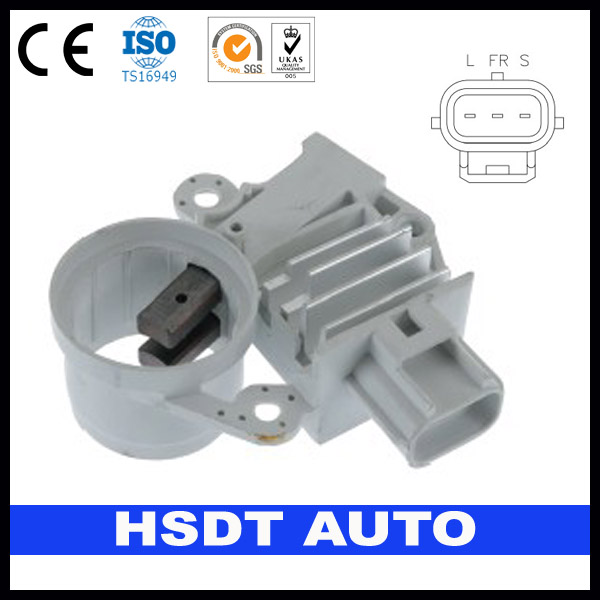

Product name : F602 FORD auto spare parts alternator voltage regulator
Item : F602
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Product Detailes Description:

FORD Auto Alternator Voltage Regulator  F602

Specs for: FORD Systems

Used on: Ford 6G Series IR/IF Alternators
Specs: 12 Volt, A-Circuit, I-FR-A Terminals, 14.4 Vset, 7 sec. LRC, White w/ White Cover*
Replaces: Ford XR2U-10C359-AB, XS7U-10C359-AC
Unit #s: Ford 98BB-10300-CC, F8RZ-10346-CC, WR2A-10300-AC, XS8Z-10346-BB, XS91-10300-BB
Lester #s: 8250

F602
(Ref. No: 35-216)
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, I-FR-A Terminals, 14.4 Vset, 7 sec. LRC, White w/ White Cover*
For: Ford 6G Series IR/IF Alternators
Used On: (2002-98) Ford Contour; Mercury Cougar, Mystique 2.0L
Unit Nos: Ford 98BB-10300-CC, F8RZ-10346-CC, WR2A-10300-AC, XS8Z-10346-BB, XS91-10300-BB
Lester Nos: 8250
WAI Ref. Nos: 1-2207-01FD, 1-2263-31FD
Note: Regulator shutdown with loss of sense (A) or light (I) connection.
FR provides feedback to vehicle PCM.
*F602 also replaces Ford OE white body regulator w/ gray cover
Components:
38-217-1 Brush
39-2702 Brush Spring
Features:
- Transpo
