Products > Auto Rectifier > > BOSCH alternator rectifier IBR302

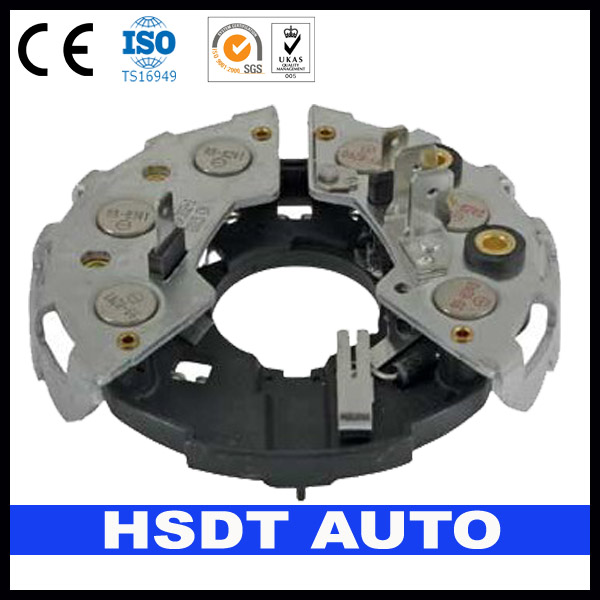

Product name : BOSCH alternator rectifier IBR302
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Specifications


BOSCH Rectifier
High Quality
Fast Delivery
Free Samples
Great Service



Product Detailes Description:

BOSCH alternator rectifier  IBR302 IBR302-1

Features
REC BO
Diodes: 6-40 Ampere
Diameter OD: 114 mm
• With W-Terminal
• With Trio
• same as IBR303 but with W-Terminal
• For 65 A Alternators

FOR USE ON:Audi, VW Diesel

Original Number
AUDI/VW
068903359
BOSCH
1127011116,1127320506,
1127320614,1127320648.
LUCAS
21221404, UBB417.
For use on ALTERNATORS:
BOSCH
0120489080,0120489081,
0120489082,0120489083.
0120489069 0120489070,
0120489183 0120489286,
0120489294 0120489296,
0120489475 0120489481.

IBR302-1
(Ref. No: 31-9108)
Rectifier
For: Bosch 489 Series 45-65A IR/EF Alternators
Used On: (1985-77) Audi, VW
Unit Nos: Bosch 0-120-489-080, -081, -082, -083, -186, -208, -210, -211, -248, -249, -250, -282, -283, -470, -960, -961, -966, -967, -969, -971, -972, -973, -974, -975, -976, -977, -978, -979, -980, -981; 0-886-031-501; VW-Audi 049-903-015J, -017A, -017AX; 068-903-017, -017A, -017C, -017CX, -017F, -017FX, -017J, -017JX, -023M, -023S, -025C, -025E, -025J, -025K, -025L, -027F, -029, -029B, -023A; 076-903-023G, -023M; 175-903-023AA, -023T
Lester Nos: 13055, 13129, 13172, 14410, 14412, 14797, 14803, 14807, 14969, 14971
WAI Ref. Nos: 1-1282-00BO, 1-1392-00BO, 1-1395-01BO, 1-1396-01BO, 1-1398-01BO, 1-1407-01BO, 1-1462-01BO, 1-1587-00BO
Dim: 114mm OD
Note: With W-terminal. With Diode Trio.
Similar to IBR303-1 except IBR303-1 wo/ W-terminal.
Features:
- Transpo
- 6-40A, 13mm press-fit diodes
